AC220V 50Hz 120SQMM Electric Wire Stripping Machine For Electrical Wire
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9100 |
| Model Number: | CX-120A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/SET |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Cutting Length: | 1-99,999mm (according To The Size Of The Wire) | Stripping Length: | Head: 1.0mm-800mm(according To The Wire) End: 1-260mm(according To The Wire) |
|---|---|---|---|
| Applicable Wire: | 10-120mm² PVC, Sheathed Wire | Capacity: | 800-800pcs/hr(depending On The Size And Material Of Wire) |
| Cutting Tolerance: | 0.002*L(L=cutting Length) | Voltage: | AC220V/50Hz |
| Highlight: | 120SQMM Electric Wire Stripping Machine,50Hz Electric Wire Stripping Machine,AC220V stripping machine for electrical wire |
||
Product Description
CX-120A Automatic Computer 120 SQMM Wire Cable Cutting Peeling Stripping Machine
Features:
Wire straightener
The bent wire can be leveled through the roller and crimping wheel.

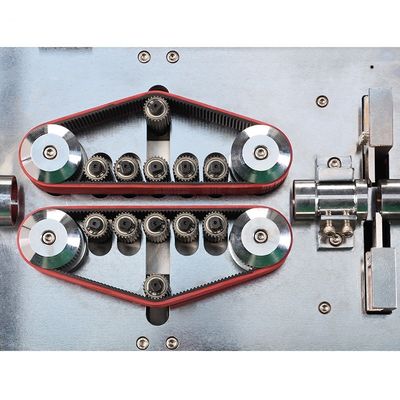

Wire feeding device
With belt feeding, the wire surface can be free of embossing and scratch, and the wire feeding is stable.
Metal button
The button adopts a metal operation button to prolong the service life and feel comfortable.
Heat dissipation opening
The machine is equipped with heat dissipation space so that the excess heat can be discharged in time to protect the machine.
Power interface
This power interface is waterproof and dustproof, and the link is stable and not easy to fall off.
Built-in gauge
The stainless steel console is equipped with a measuring ruler to measure and master the state of the machine at any time.
Technical parameter
| Model and name of the machine | CX-120A |
| Cutting length | 1-99,999mm (according to the size of the wire) |
| Stripping length |
head: 1mm-800mm(according to the wire) end: 1-260mm(according to the wire) |
|
Intermediate stripping section |
15 |
| Applicable wire | 10-120mm² PVC, sheathed wire, ect |
| Capacity | 800-800pcs/hr(depending on the size and material of wire) |
| Power | 1,000W |
| Wire feeder diameter | ≤φ30 |
| Cutting tolerance | 0.002*L(L=cutting length) |
| Voltage | AC220V/50Hz |
| Dimension | L750mm*W550mm*H600mm |
| Weight | 200kg |
