ISO9001 Electric Wire Stripping Machine Automatic 50Hz Apply To 6sqmm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-508ZW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/SET |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Cutting Length: | 0.1-99,99.9mm (according To The Size Of The Wire) | Stripping Length: | Head: 0.1mm-30mm End: 0.1-20mm |
|---|---|---|---|
| Applicable Wire: | 6-25mm² | Capacity: | 2,000-8,000pcs/hr |
| Cutting Tolerance: | 0.002*L(L=cutting Length) | Voltage: | AC220V/50Hz |
| Bending Angle: | 30, 45, 60 90degrees (adjustable) | Intermediate Stripping Section: | 13(customized) |
| Highlight: | ISO9001 Electric Wire Stripping Machine,50Hz Electric Wire Stripping Machine,6sqmm Automatic Wire Stripping Machine |
||
Product Description

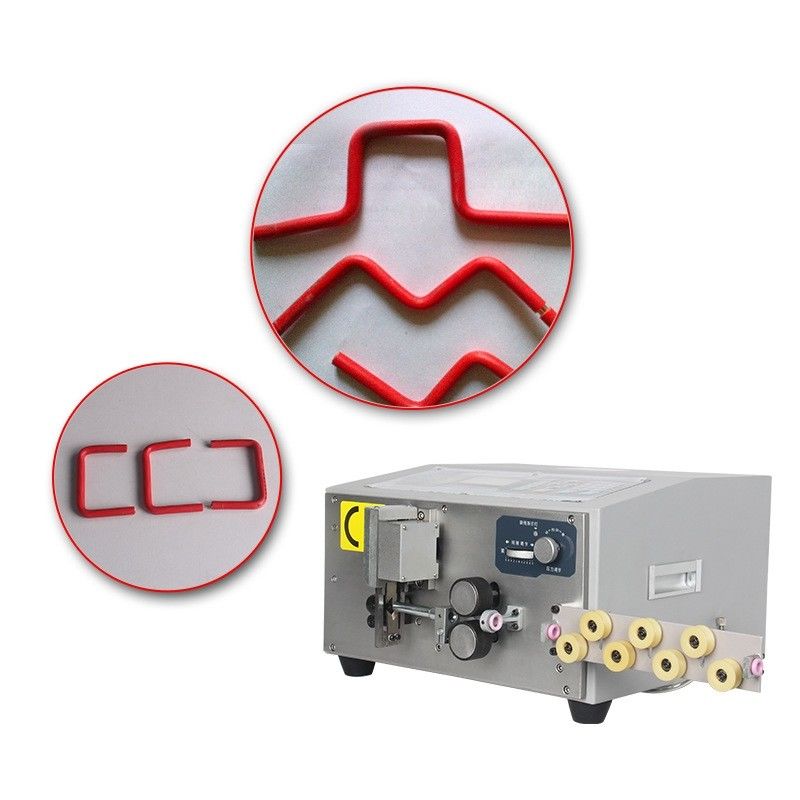

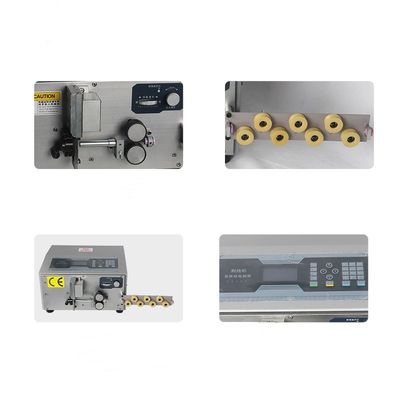

CX-508ZW U Z W Shaped Automatic Wire Cable Cutting Stripping Bending Machine
Technical parameter
| Model | CX-508ZW | CX-508ZWS | CX-508ZWT |
| Applicable cable | within 6sqmm | within 6sqmm | within 25sqmm |
| Cutting length | 0.1-9,999.9mm | 0.1-9,999.9mm | 0.1-9,999.9mm |
| Head stripping length | 0.1-30mm | 0.1-30mm | 0.1-30mm |
| End stripping length | 0.1-20mm | 0.1-20mm | 0.1-30mm |
| Stripping speed | 2,000-8,000pcs/hr | 2,000-8,000pcs/hr | 2,000-5,000pcs/hr |
| Cutting accuracy | 0.002*L | 0.002*L | 0.002*L |
| Bending times | 13 | 13 | 10 |
Features:
1, Stable and fast: Stable driving and stripping technology.
2, linear guide rail: Seven straighteners are adopted to better improve work efficiency.
3, New economic type: New economical high-speed design, fast speed, and stable performance.
4, HD display: High definition LED display, fast access to information, and reduce errors.
Applicable to the meter box, meter cabinet, electric control box, and electric control cabinet.
The bending degree is adjustable: 30 degrees, 45 degrees, 60 degrees, 90 degrees
