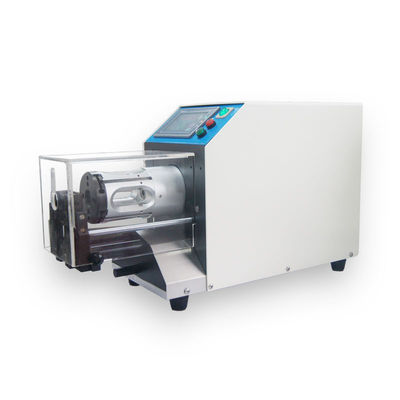

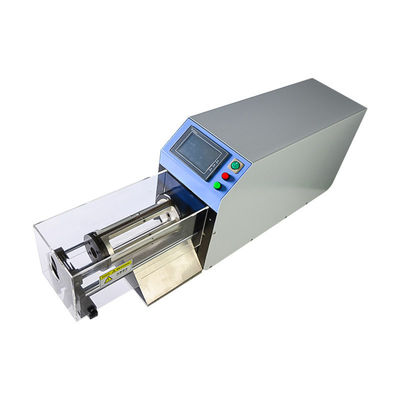

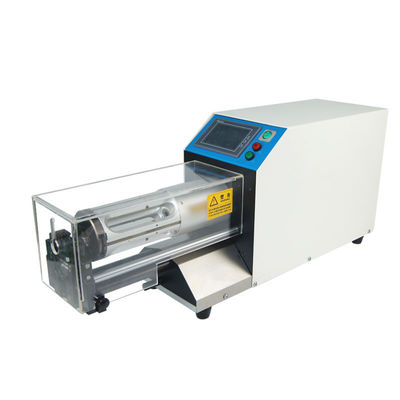

15mm Length Pneumatic Wire Stripping Machine Wire Dia 5-25mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-2515 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/sets |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Stripping Length: | 150mm | Wire Diameter: | 5-25mm |
|---|---|---|---|
| Power: | 630W | Voltage: | AC 220/110V 50/60hz |
| Capacity: | 200-500pcs/hr | ||
| Highlight: | CX 2515 Pneumatic Wire Stripping Machine,Dia25mm Pneumatic Wire Stripping Machine,Dia5mm Cable Wire Stripping Machine |
||
Product Description

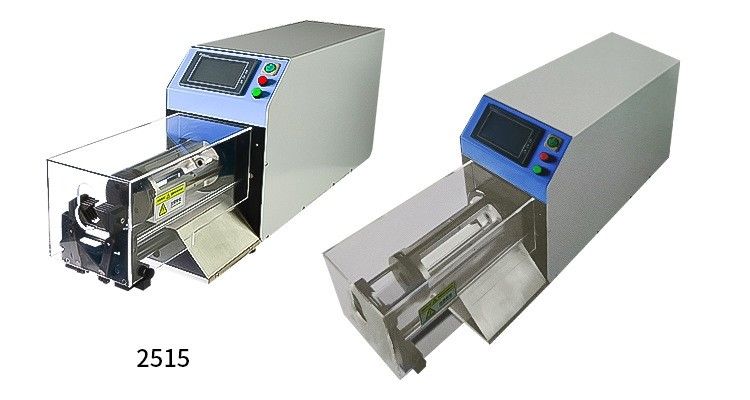

CX-2515 Wire Dia 5-25mm Semi-Automatic Coaxial Cable Wire Stripping Machine
Features:
1, CX-2515, 2520 is suitable for all kinds of flexible and semi-flexible coaxial lines in the communications industry and medical automotive industry, the charging pile cable, the medical line peeling, the tiling neat, precise and not damaging the conductor.
2, Human interface, easy to understand and operate. It can peel up to 9 layers and store 99 processing parameters.
3, The design and exquisite structure of the rotary cutter head and four pieces of rotary cutter improve the stability of wire stripping and the working life of the cutter.
4, Using servo motor, precision ball screw, and multi-point motion control system, the performance is stable and efficient.
5, The cutting tool adopts imported tungsten steel and titanium alloy coating, which is sharp and durable.
6, It can meet the special requirements of multi-layer peeling, multi-stage peeling, automatic continuous start, and so on.
7, Continuous innovation has been carried out on the original model, which is more capable, more optimized structure and more powerful performance
Technical Parameter
| Name and model of machine | CX-2515 coaxial cable stripping machine | CX-2520 coaxial cable stripping machine |
| Wire diameter | 5-25mm | 5-25mm |
| Max stripping length | 150mm | 200mm |
| Capacity | 200-500pcs/hr | 200-500pcs/hr |
| Power | 630W | 800W |
| Voltage | AC 220V/110V 50/60Hz | AC 220V/110V 50/60Hz |
| Dimension | L920mm*W220mm*H400mm | L1,000mm*W225mm*H400mm |
| Weight | 45kg | 50kg |
Company Introduction
Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.
The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.
We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.
