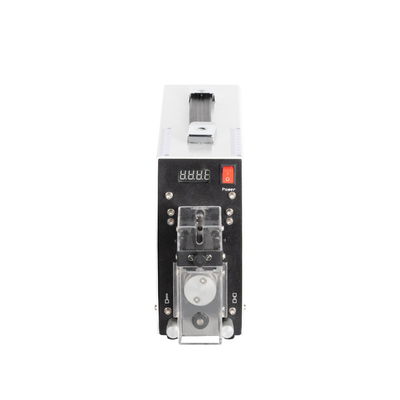

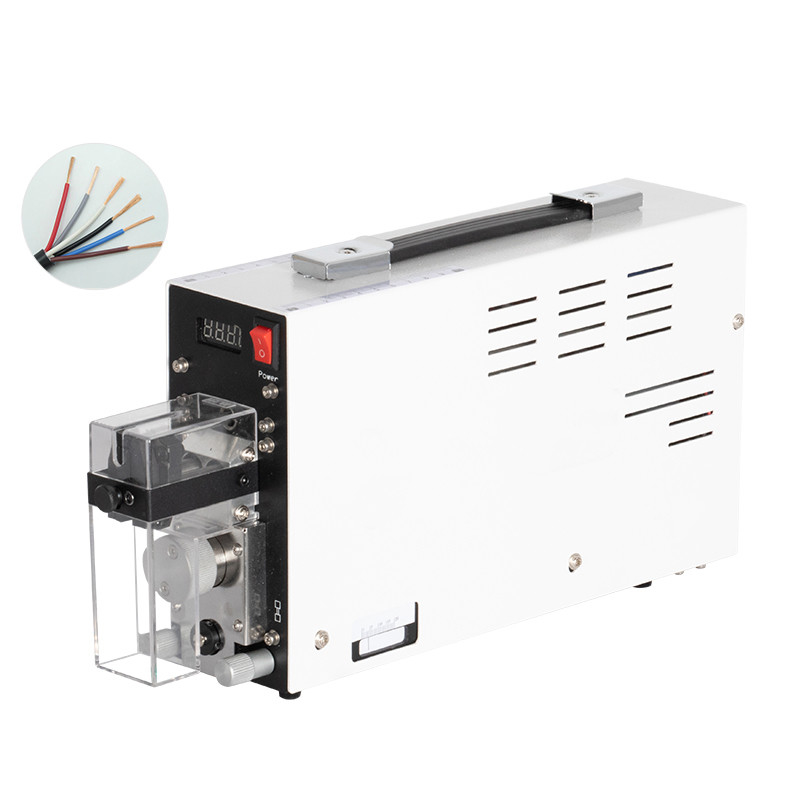

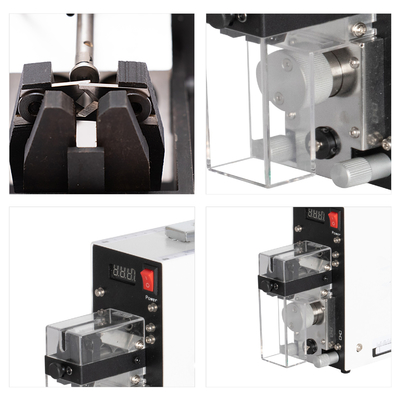

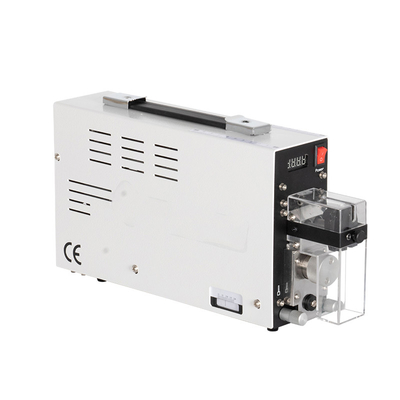

Portable Pneumatic Unistrip Air Driven Semi Automatic Wire Stripper 0.03-4mm2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENCIN |
| Certification: | ISO9001 |
| Model Number: | CX-1090 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | Carton case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Available Cross Section: | 0.03-4mm2 | Max. Stripping Length: | 20mm |
|---|---|---|---|
| Stripping Accuracy: | Full-strip: 0.5mmm, Half-strip: 6mm | Diameter Setting Accuracy: | 0.01mm |
| Single Package Size: | 33X23X13 Cm | Single Gross Weight: | 8.000 Kg |
| High Light: | Pneumatic Semi Automatic Wire Stripper,AWG32 Semi Automatic Wire Stripper,AWG14 Wire Peeling Machine |
||
Product Description
Portable Pneumatic Unistrip Air Driven Semi-Automatic Stripping Machine For 0.03-4mm2 Wire Peeling (AWG32-AWG14)
Description
1. It can work without power supply after connecting to the air source.
2. The sensor control does not require a foot switch to strip the head accurately.
3. The stripping length, cutting depth, half stripping and full stripping are all adjusted by the scale knob without tool assistance. Simple and fast.
4. The 90-degree V-shaped knife edge design is extremely versatile, and it does not need to change the knife edge to process different wires.
5. Small size (6KG), easy to move, it can work normally where there is air source.
Technical Parameter
| Model | CX-1090 |
| Max. Stripping length | 20mm |
| Diameter setting accuracy | 0.01mm |
| Processing time | 2pcs/s |
| Available cross section | 0.03-4mm2 |
| Stripping accuracy | Entire-strip: 0.5mmm, Half-strip: 6mm |
| Weight | 4.5Kgs |
| Dimension | 380*85*188mm |
| Power supply | 220V/110V/50HZ/60HZ |
| Plug |
Euro/US/Chinese plug |
